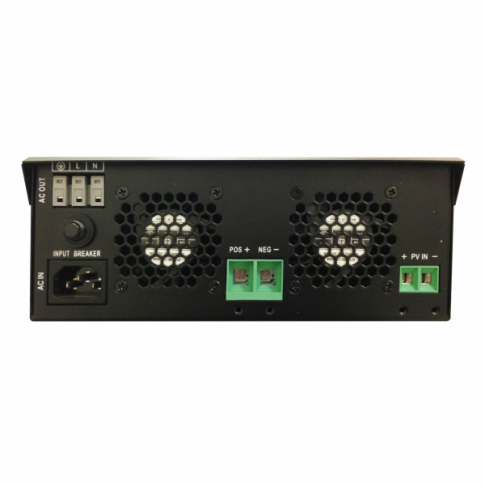

Iconica 2000W 24V hybrid pure sine wave inverter

Inverter specifications:

• Nominal battery voltage: 24V
• Continuous power output: 2000W / 2000VA
• Surge power: 4000VA
• Output voltage: 230V AC
• Output frequency: 50Hz /60 Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 1200W
• Maximum open circuit solar input voltage: 80V
• Maximum solar charging current: 50A
• Maximum mains AC charging current: 20A
• Maximum combined charging current: 50A
• Peak efficiency: 93%
• Operating temperature: -10C to 50C
• Supplied with:
  • 1.5m AC power cable with 3-pin UK plug
  • PC connection cable and PC software CD
• Size: 32 x 22.5 x 8.8 cm
• Weight: 5.5 kg

This product is covered by a 1 year manufacturer warranty . For more information please refer to our Terms and Conditions .

1. 2000W 24V Pure sine wave inverter: Converts DC current into 230V AC mains electricity, to run various household appliances such as a TV, laptop, lighting, fridge etc. Able to generate 2000VA of continuous power with a strong peak power handling capability of up to 4000VA (to start appliances with electric motors). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.

2. Inbuilt 50A PWM solar charge controller: Regulates the input from the solar panels to the batteries, with a full range of safety functions; including protection against overcharge, overheating, reverse current etc. The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance, prolongs the life of your battery and can often recover some lost battery capacity. Performance data for the solar array is displayed on the LCD screen.

3. Enhanced 20A Smart battery charger: Designed to enable safe and efficient unattended charging of a battery from a mains power source or generator, with full overcharge protection and multiple charging stages.

The Iconica 2000W 24V hybrid inverter boasts an abundance of unique features, providing enhanced functionality over standard inverters. These include:

- Output source priority: This intelligent feature allows the user to set output source preferences(solar/ battery power/ mains input or a generator) for the AC load output of the inverter. This menu includes several options for varying conditions and scenarios, e.g. which source of energy is given priority for the AC output if solar power is insufficient/ if battery voltage is too low/ if mains is unavailable, etc.

- Battery charging priority: A wide selection of battery charging priority options are available. For instance, the user can choose to charge the battery using solar power only/ using a combination of solar power and mains power/ from mains power only etc.

- A range of highly customisable settings: The parameters for this inverter can be personalised to an exceptionally specific degree via the user-friendly interface. At the touch of a button, the user can customise parameters such as the AC input range, battery type, max charging current, specific high/low voltage disconnect points (and preferred charging source upon reconnection), the duration and voltage of each charging stage, auto-restart options, power saving mode, overload bypass, battery equalization stage characteristics and so on. There are also options for managing operational features such as the audible alarm and backlight settings.

- Illuminated LCD screen: Displays vital statistics which are easily changeable by use of the up/down keys. This information includes: status and mode, input/output voltage, frequency, battery voltage, load power and percentages, charge and discharge current etc.

- Advanced communication options: The inverter is supplied with a PC connection cable and software CD for convenient viewing of important system information, such as: solar/ battery/ AC voltage, charging current, battery capacity etc. Detailed data logs are also available to view and export to PDF/ Excel formats. This inverter also has the potential to send data to an online user portal using a Wi-Fi connection kit or mobile app Wi-Fi kit (purchased separately). By connecting via one of these methods, the user will unlock access to exclusive features such as email / push notification status updates for the inverter, remote system monitoring from any location and much more.

- Auto restart function: When overload or overheating occurs, the inverter will disconnect the load appliances, and automatically reconnect once safe conditions are detected. The inbuilt fan is helps to maintain an optimal operational temperature.

- Intelligent cooling design : The inverter uses predictive fan logic based on performance and temperature (1 or 2 fans operating at a time, with variable speeds) to prevent over-heating of the components.

This hybrid inverter is suitable for 24V flooded and sealed G EL / AGM lead-acid battery banks with pre-defined charging programs. A user-defined battery type with numerous customisable settings is also available for charging other lead acid batteries.

If you are unsure whether 2000W is enough for your appliances, please refer to the following table: Table of typical power consumption of domestic appliances .

This inverter is also supplied with a 1.5m cable with 3-pin UK plug for connection to a mains power outlet.
