High-capacity 24V power engineered with the enhanced accuracy and efficiency of the Drift Gen2.

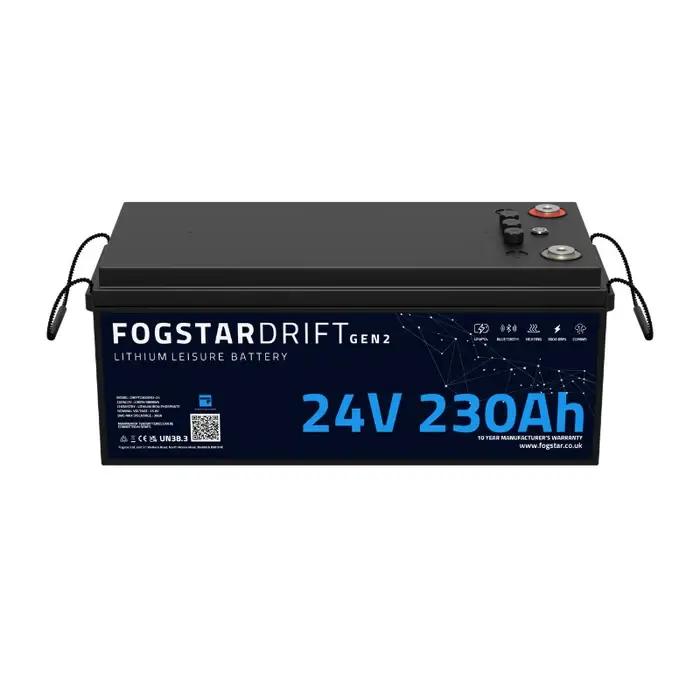

The Fogstar Drift Gen2 24V 230Ah LiFePO4 Battery is built for off-grid systems that demand stable, efficient and long-lasting energy storage. With refined monitoring hardware, tougher internal engineering and improved power handling, it delivers reliable performance across campervans, boats, off-grid cabins and 24V solar installations.
Key Features
300A Smart BMS for High-Demand Systems: The next-generation 300A Battery Management System handles heavy loads with ease. Perfect for powerful inverter setups and demanding off-grid applications.
0.2A Shunt Accuracy: Drift Gen2 delivers highly accurate power monitoring, giving you tighter state-of-charge readings and more reliable system performance.
Active Cell Balancer for Maximum Efficiency: A built-in active balancer keeps every cell perfectly aligned. This boosts efficiency, improves cycle life and maintains consistent output.
Premium EVE Prismatic Cells: Built with Grade A LF230 EVE cells that deliver consistent performance, solid stability, strong safety and a long service life.
Full Victron Plug-and-Play Integration: Drift Gen2 communicates cleanly with Victron systems for faster installation and more accurate system data.
IP67 Waterproof and Dustproof: Fully sealed against water and dust. Ideal for marine installations, damp lockers and rugged environments.
Bluetooth Monitoring via the Fogstar App: Track real-time voltage, current, SOC, temperature and more using the Fogstar Drift App for iOS and Android.
Automatic Low-Temperature Heating: The built-in heater automatically warms the battery to a safe temperature before charging, protecting the cells in cold weather.
Improved Hardware and Design: A custom lid, upgraded terminals and a physical on/off switch make installs cleaner and maintenance easier.
Designed & Supported in the UK: Created by our award-winning engineering team with full UK-based technical support. Backed by a 10-year warranty.
Technical Specifications
Energy: 5,888Wh
Capacity: 230Ah
Voltage: 25.6V LiFePO4
Cycle Life: 4000 Cycles (80% DOD)
Recommended Charge Voltage: 28.4V
Max Continuous Discharge: 300A
Cell Type: EVE Grade A LF230
BMS: 300A Smart BMS with 0.2A shunt accuracy and active balancing
Monitoring: Bluetooth via Fogstar Drift App
Heating: Integrated low-temp heating
IP Rating: IP67
Dimensions: 520 (L) x 238 (W) x 221 (H)
Weight: Approx 38Kg
Terminals: M8 - 1.25 pitch - 12mm (bolts included).
System Configuration Options
Connect up to 2 batteries in series for 48V systems
Connect up to 16 batteries in parallel to increase total capacity
